Basic Info.
Model NO.
LTA-3040
Certification
Ce and ISO 9001:2015
Registration Accuracy
+/- 0.01mm
Max Printing Size
(300X400)mm
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Raw Material Types
Pet, PVC, PE, PV, PP, PC, BOPP, Adhesive Stickers
Transport Package
Wooden Box
Specification
(L7000xW1100xH1900)mm
Trademark
LINGTIE
Origin
Xiamen, China
HS Code
8443911900
Production Capacity
30 Sets/Mouth
Product Description

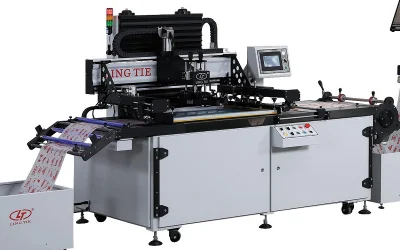

Roll to Roll Automatic Label Sticker Silk Screen Printer
Product Description
LTA-3040 roll to roll screen printing machine is a fully automatic roll to roll screen printing line.
Maximum printing web width 320mm, maximum printing area 300x400mm.
It is composed of a feeding machine, a screen printing machine and a hot air dryer.
UV dryer and powder machine can be added to the line upon request.
It features an automatic register system with 3 sensors to ensure high printing precision for multi color overprint.
LTA-3040 roll to roll screen printing machine can be used to print the following but not limited to these products:
Heat transfer labels for garment, shoes, gloves
Vulcanizing labels for rubber hose and tyres
RFID antenna for smart cards
Water transfer films
In-mould decoration labels
Membrane switches
Home appliance panels
Flexible printed circuit
Automatic Roll to Roll Label Printing Machine includes a feeder, a screen printing unit and a hot air dryer.
Machine Parameters:
Maximum printing web width 320mm, maximum printing area 300x400mm.
It is composed of a feeding machine, a screen printing machine and a hot air dryer.
UV dryer and powder machine can be added to the line upon request.
It features an automatic register system with 3 sensors to ensure high printing precision for multi color overprint.
LTA-3040 roll to roll screen printing machine can be used to print the following but not limited to these products:
Heat transfer labels for garment, shoes, gloves
Vulcanizing labels for rubber hose and tyres
RFID antenna for smart cards
Water transfer films
In-mould decoration labels
Membrane switches
Home appliance panels
Flexible printed circuit
Automatic Roll to Roll Label Printing Machine includes a feeder, a screen printing unit and a hot air dryer.
Machine Parameters:
| Model | LTA-3040 | LTA-5060 | LTA-6080 | |||||
| Max. Printing Size | 300x400mm | 500x600mm | 600x800mm | |||||
| Printing Speed | 0~5000 print/hr. | 0~2500 print/hr. | 0~2500 print/hr. | |||||
| Max. Screen Frame Size | 600x800mm | 800x1000mm | 900x1200mm | |||||
| Frame Adjusting Variable | 60mm | 60mm | 60mm | |||||
| Max. Substrate Width | 320mm | 520mm | 620mm | |||||
| Registration Accuracy | ±0.01mm | ±0.01mm | ±0.01mm | |||||
| Air Source | 0.4~0.6mpa | 0.4~0.6mpa | 0.4~0.6mpa | |||||
| Power | 220V, 3KW, 15A | 220V, 3KW, 15A | 220V, 3KW, 15A | |||||
| Printing Material Thickness | 0.02~0.5mm | 0.02~0.5mm | 0.02~0.5mm | |||||
| Weight | 600kgs | 700kgs | 950kgs | |||||
| Overall Dimensions (L*W*H) | 7000x1100x1900mm | 8200x1200x2000mm | 9000x1350x2200mm | |||||
Machine Photos:
Vacuum table: fix the PET film during printing process. Automatic register system for screen alignment.
Feeder: dust removing, protect film removing, electrostatic eliminating,etc.
Print Head: Good stability, ensure long time use of the machine.
Hot Air Dryer: 30m, 60m, 80m inner loop hot air dryer for optional.
Printed Samples :
enterprise honor:
Workshop:
Exhibition:
Our Team and Customers:
Machine Package:
Packed in wooden box for delivery by container.
